Features

1 .Direct inkjet printing with built-in pressure pump and low-pressure air supply system,providing stable air pressure and low failure rate.

2.The control system is simple and reliable, making it easy to operate and maintain.

3.The ink supply system of the device is well-sealed, unaffected by the working environment,and does not cause ink blockage even after long-term use.

4.The machine has no easily worn parts, resulting in significantly lower maintenance costs compared to Cij inkjet printers.

Product Detail

	Nozzle rotation lock mechanism Independently developed magnetic rotary encoder synchronizer
	Each wheel is secured with a set screw,allowing for adjustment of the wheel spacing.The four-wheel design facilitates pipe handling and is suitable for uneven surfaces
	Nozzle casing design The front face of the nozzle casing is designed with an inward curve to facilitate the rotation of the nozzle. The single-side protrusion on the nozzle end helps protect the nozzle. Reserved TYPE-C data port with a rubber plug cover for waterproof and dust proof protection.
	Detailed Design The nozzle allows for adjustable print height and is stable and durable,capable of withstanding acid and alkaline corrosion.

Software Features	Real-time date and time clock、Batch printing、Counting.Shift printing、Font inversion (upside down)、Horizontal flipping
Printing Graphics	Capable of printing logos, symbols, and more
Date Code	Supports century, year, month, day, hour, minute, and second
Printing Speed	Manual control
Screen Display	Displays all printing parameters clearly, with one-touch setting changes
Printing Direction	360-degree adjustable
Printing Material	Suitable for both permeable and non-permeable materials
Ink Types	Water-based ink (for permeable surfaces) or oil-based ink(for non-permeable surfaces)
Ink Colors	Available in multiple colors including black, red, blue, yellow, white, and others
Ink Supply	Built-in air pump with adjustable air pressure: 0.01-0.06 MPa
Charging Time	Approximately 4 hours
Operating Environment	Temperature range: 5°C to 45°C
Machine Weight	Approximately 1.5 kg
Machine Appearance	Integrated injection-molded body, wear-resistant and durable

自动草稿

Handheld large-character inkjet printers are efficient on-site identification tools in the construction industry. Faced with chaotically stacked building materials, it can directly print specifications, grades and usage areas on the surface of wood, steel and stone, making material access and management more convenient.

For large components such as steel structures and concrete pipes, the model, batch and installation number can be quickly marked to assist construction assembly and quality traceability. On outdoor facilities such as utility poles and pipelines, the large characters printed are wind and rain resistant, wear-resistant, and remain clear for a long time, making maintenance and inspection convenient.

Whether it is a rough stone surface or a smooth metal pipe, it can be flexibly adapted to provide reliable identification support for on-site management of building materials and optimization of construction processes.

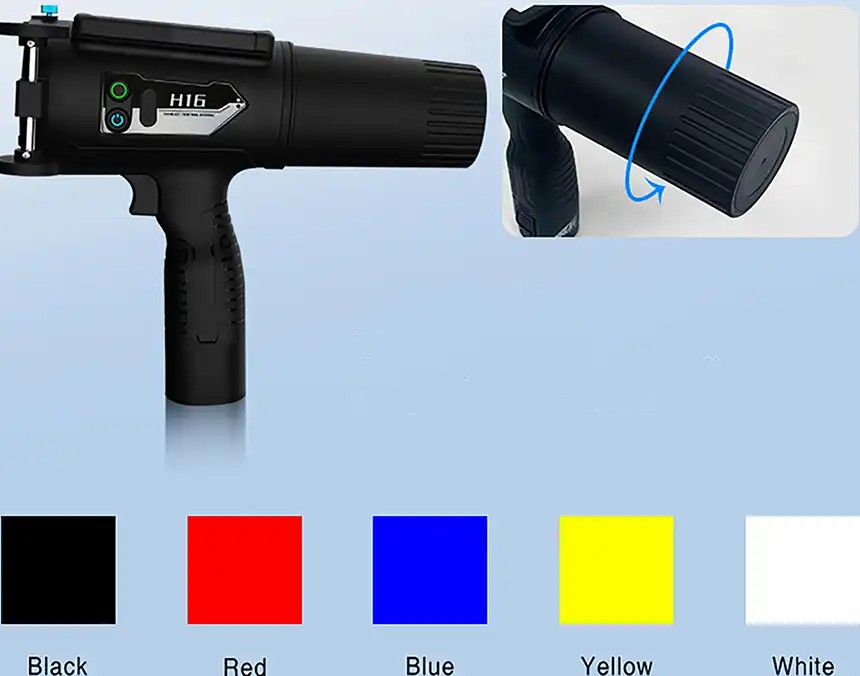

Multi-color optional large-capacity ink cartridges
Ketone-based, water-based, and other color inks can be customized according to customer needs. Ink cartridges are used for ink supply, with a large capacity of 200ML, which can be quickly cleaned and easily replaced.

Download Brochures

Machine
Model	16 Dot Matrix	32 Dot Matrix
Software Features	Real-time date clock, print batch, count, shift, font upside down, left-right flip
Font Size	Height can be adjusted arbitrarily between 10-60MM, width can be adjusted arbitrarily	Height can be adjusted between 10-124MM, width can be adjusted
Printing Lines	Single line of Chinese characters and double lines of numbers or English	Print 4 lines of 75 dot matrix characters, 2 lines of 1616 dot matrix characters, 1 line of 32*32 dot matrix characters
Printing Direction	360° sprayable

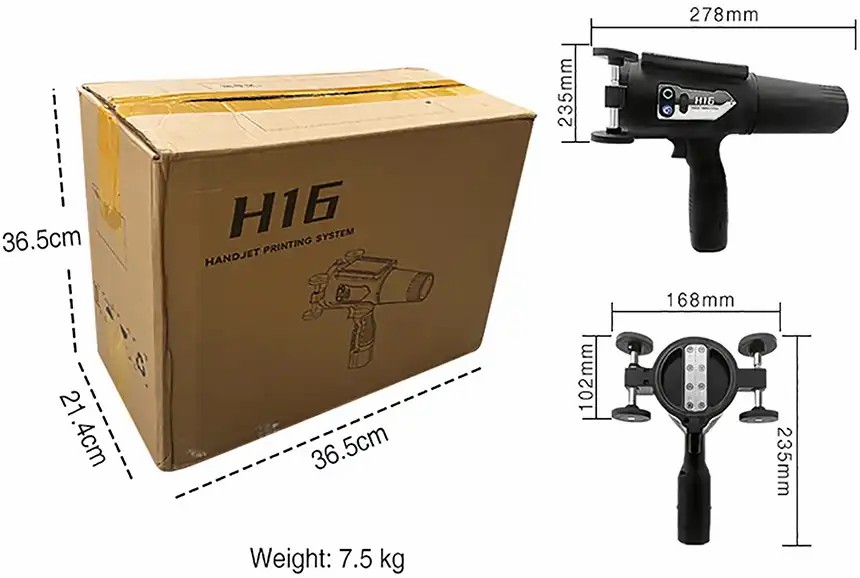

Product Size	278*235mm	357*235mm
Machine Weight	About 1.5KG	About 2KG

Handjet Large Character Portable Printer
