Features

It meets the requirements of 7*24 hours of continuous production, takes into account the advantages of product performance and procurement cost, and can be quickly deployed to various production lines to achieve high-precision digital inkjet marking.

The innovative intelligent siphon ink supply system with multiple patents is different from the traditional siphon ink supply system. It is more intelligent, easy to use, and flexible, and retains the advantages of super stability of the siphon ink supply system.

Advanced technologies such as fault warning, multi-level liquid level management, intelligent self-awakening cycle, ink degassing, fast modularization, one-button emptying, and one-button whole machine cleaning are all used on it.

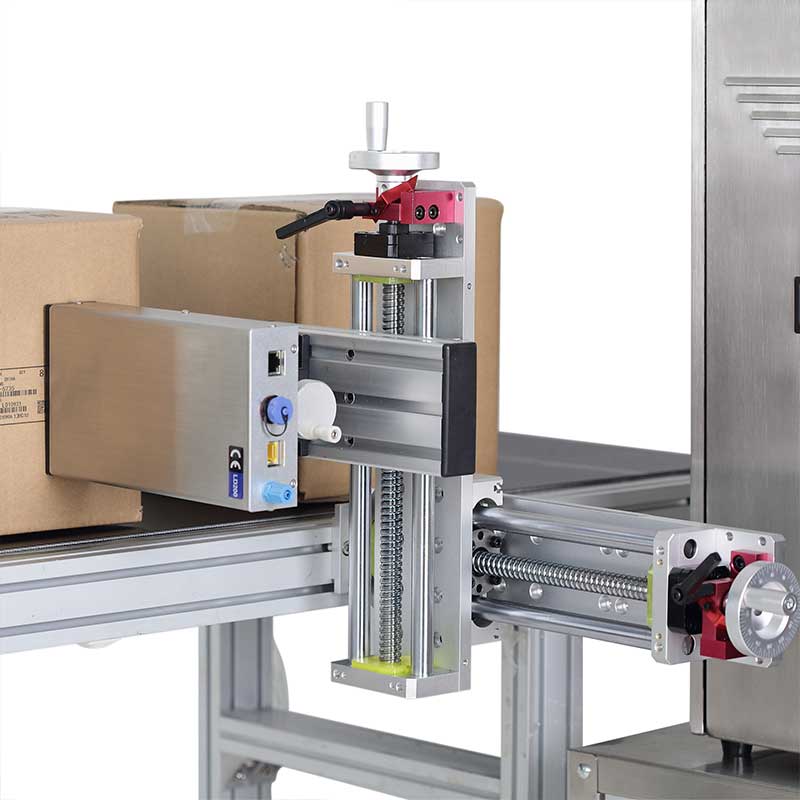

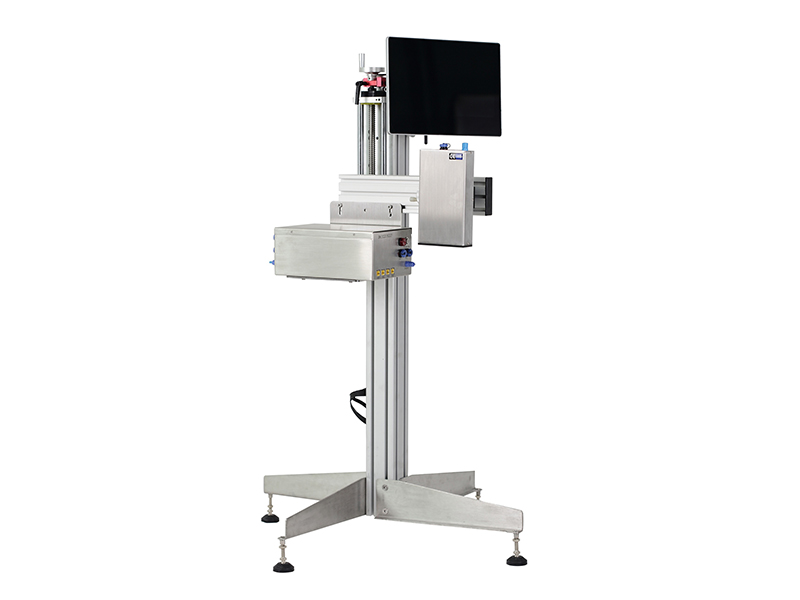

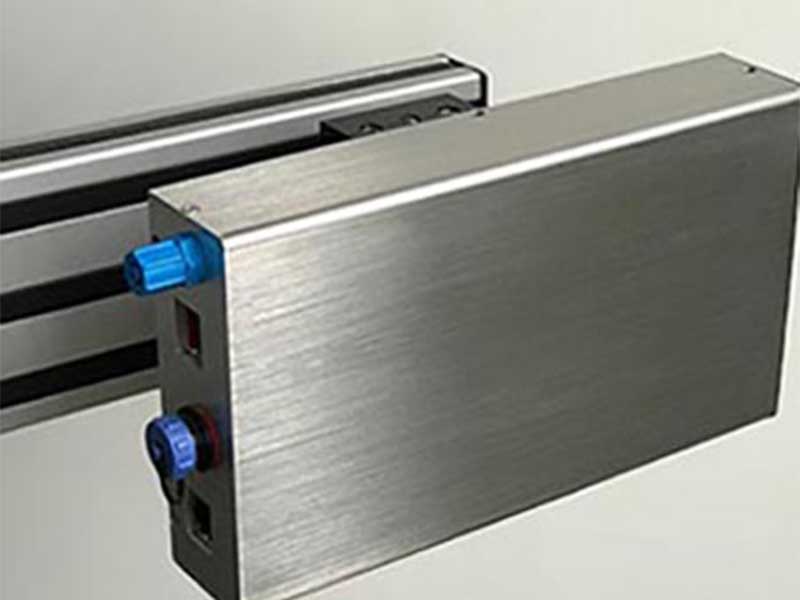

The stainless steel and aluminum nozzle bracket can achieve multi-dimensional fine adjustment and 360-degree printing in any direction.

Product Detail

	Variable data printing High-resolution UV printing system based on micro piezoelectric technology

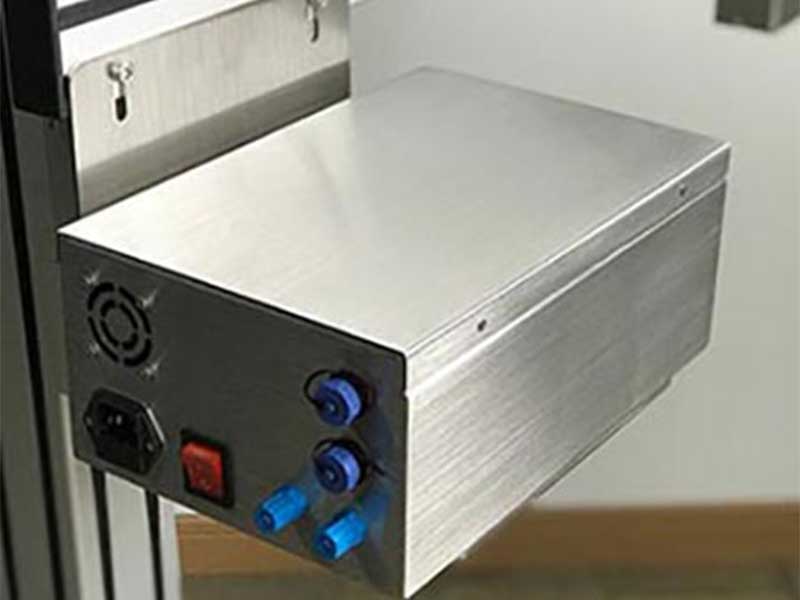

	Continuous ink supply system The centralized ink supply system greatly reduces the consumption cost , it is more reliable,easy to operate and easy to maintain

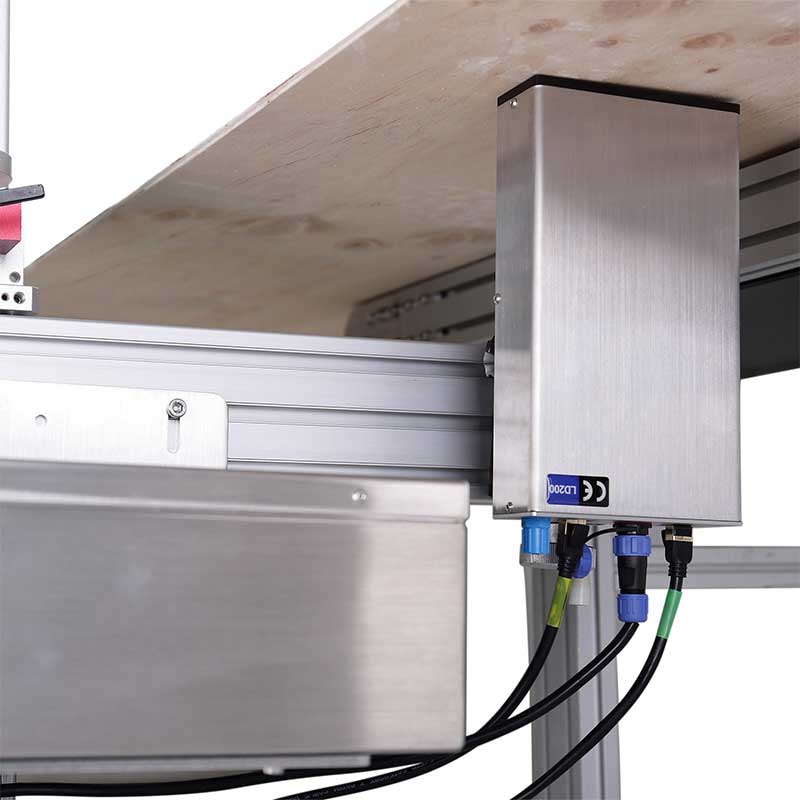

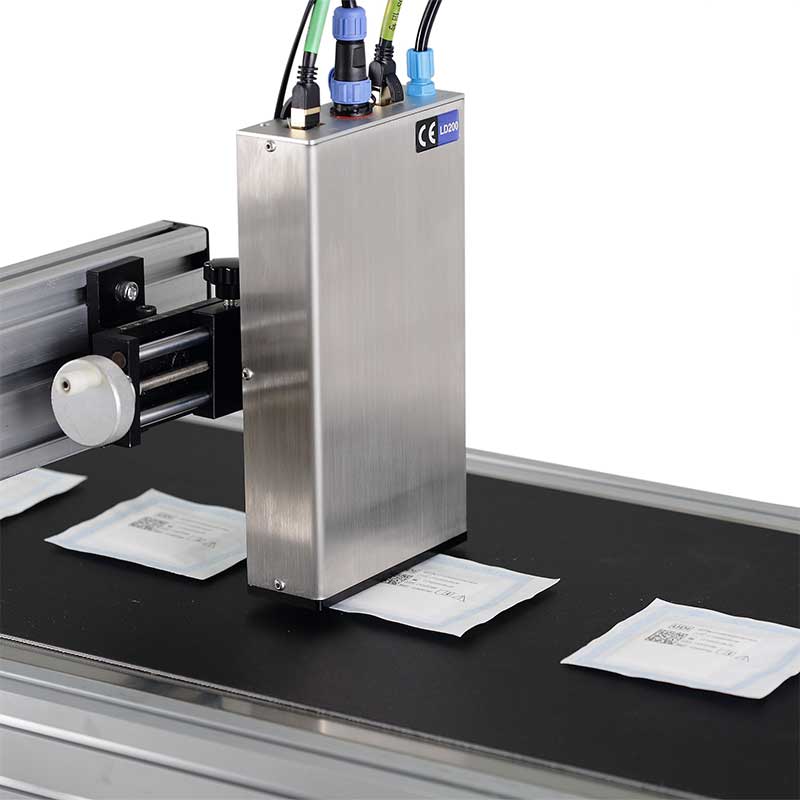

	Customized nozzles The machine can print downward,upward,sideward,it can meet multiple simultaneous printing on different printing surfaces

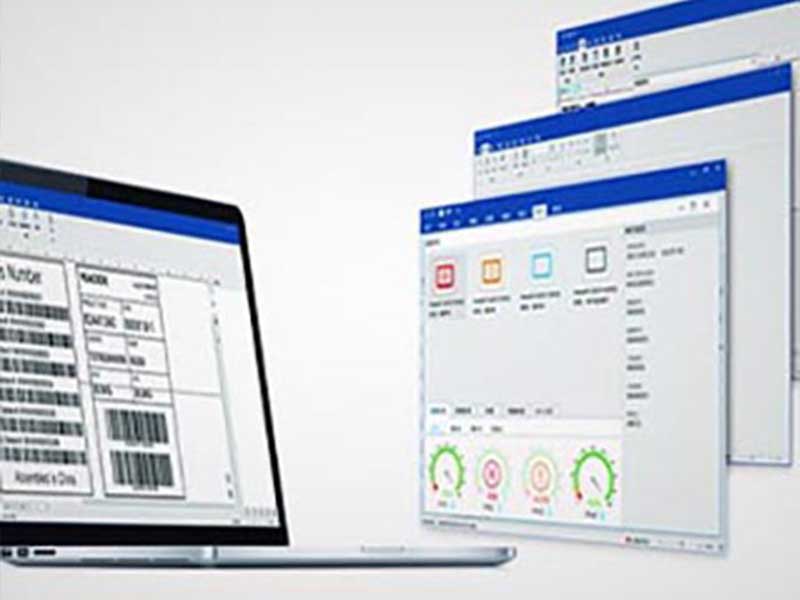

	Friendly operation interface Ultra-large capacitive touch screen is based on the Android operating interface quick operation to edit data, suppormulti-language/multi-input method

Specification	LD50	LD70	LD70	LD100	LD200
Print height	32.4mm	72mm	72mm	32.4mm	54mm
Resolution	300Dpi	180Dpi	360Dpi	300Dpi	600Dpi
Printhead Type	Industrial grade piezo printheads
Print lines	Unlimited number of lines (maximum printhead height range, arbitrary typesetting)
Print speed	0 - 60m/min
Print content	Variable and fixed text, images, PDF, 1D code, 2D code, database, etc.
Print font	Windows OS font support
Transmission interface	Gigabit network
External interface	Network interface, USB interface, RS232 interface
Printing direction	Downward printing or side printing
Printing method	Single or continuous printing
Ink type	Oil- based, water- based, UV-curable inks
Ink color	Black, white, red, blue, invisible inks, etc.
Printhead cleaning	One-touch automatic cleaning
Software function	Anti duplicate code detection and verification function to avoid duplicate code generation
Power supply	AC220V
Machine power	100W

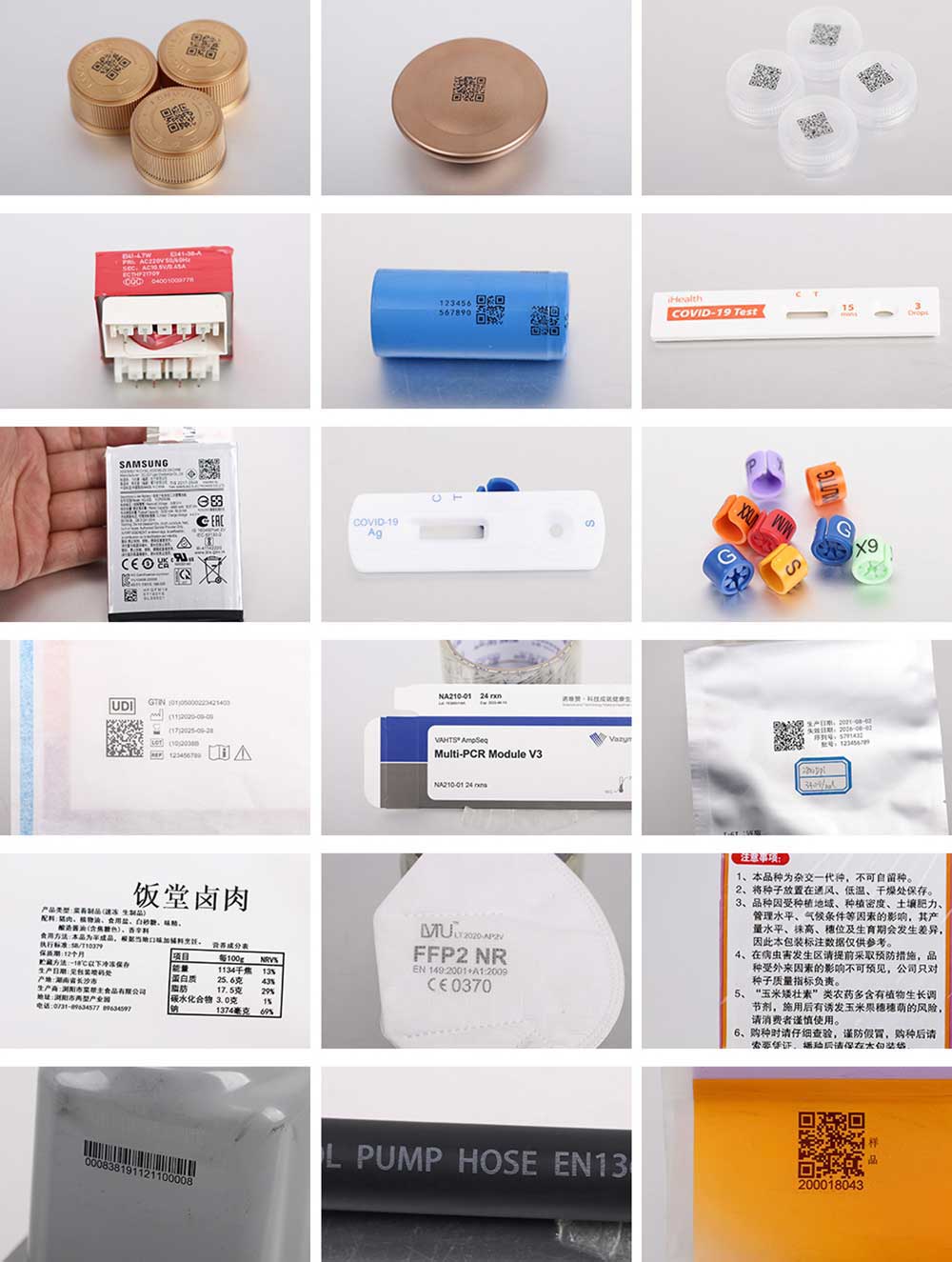

PIJ inkjet printers can produce high-quality marks on a variety of materials, suitable for different industry needs. Printable materials include plastics, metals, glass, paper products, rubber and composite materials. Printing content includes text, QR codes, barcodes, graphics, trademarks, anti-counterfeiting logos and instructions, etc.

Pij Coding Machine

Download Brochures

Machine
Print height	32.4-72mm	32.4-71.8mm	54-71.8mm
Resolution	180-600DPI	180-600DPI	180-600DPI
Print speed	0-60m/min	0-300m/min	0-330m/min
Print font	Windows OS font support
Printing method	Single or continuous printing
Machine power	100W	150W	150W
