UV PIJ Printer
UV PIJ Printer

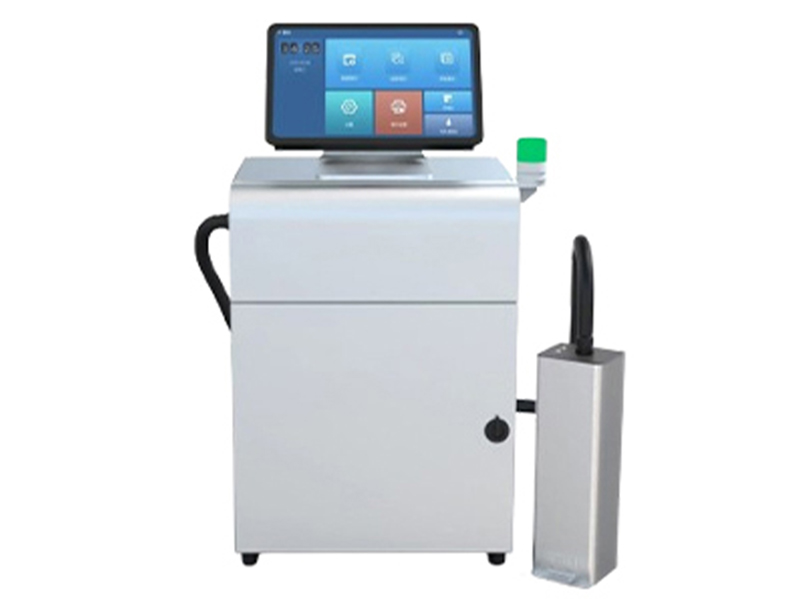

High-definition UV inkjet printer, imported high-definition nozzle, can print one-dimensional, two-dimensional barcodes, drug regulatory codes, traceability code database, variable text, image LOGO, date and time, batch number, shift and serial number, etc. Imported industrial nozzles have stable performance and are not easy to clog. Imported nozzles are used, with high printing accuracy and precise positioning. Windows system intelligent software is stable and reliable, supports hundreds of fonts, various one-dimensional barcodes, two-dimensional barcodes, supports importing pictures, variable data, etc., and has powerful functions
Email: [email protected]
Features
1.13.3-inch industrial-grade Android system, feature-rich and more stable
2. Industrial-grade modular ink path, continuous negative pressure ink supply,stable and reliable
3. lmported eco-friendly UV ink, compliant with VOC standards, resistant toacid,alkali,ketones, and alcohol wiping
4. Intelligent software system, stable and reliable
5.Large-format printing, supports 8-head splicing for printing content up to 550mm in height
6.180° rotatable printhead, compatible with any production line
Product Detail
 |
Control system Rich software and hardware in teraces: encoder, sensor.curing lamp, USB, network port, variable data high-speed printing system (Android/Windows optional)Support multi-head splicing Industrial-grade modular ink path, continuous negative pressure ink supply is stable and reliable Ultra-high-speed printing: up to 300m/min (at low resolution) Imported environmentally friendly UV ink, in line with VOC standards,acid,alkali, ketone and alcohol wiping resistance Precise negative pressure control: Accuracy up to 0.01 |
 |

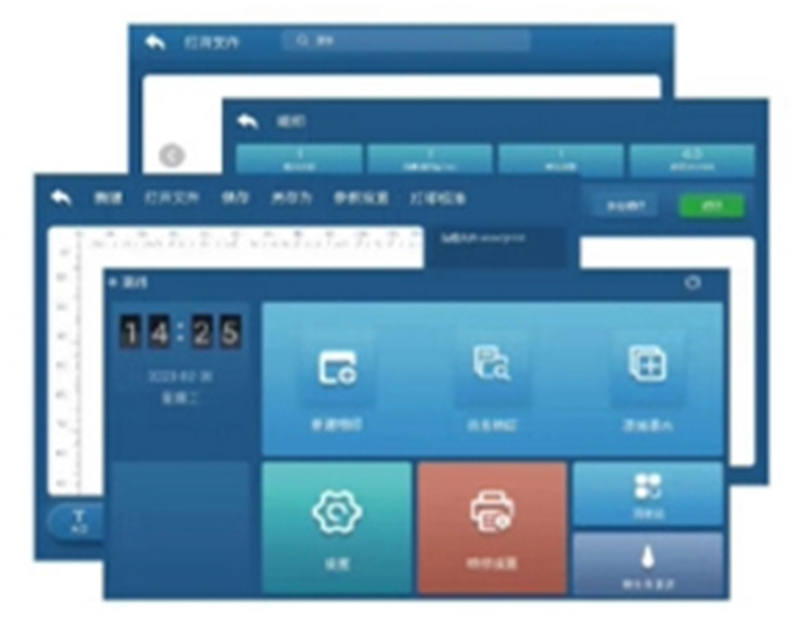

User-friendly software interface 13.3-inch/15.6-inch touch screen, with industrial-grade Android syste mand Windows operating system, rich in functions and more stable Support hundreds offonts, various 1D barcodes,2D barcodes,.support import jpg, bmp, png, TlF pictures,PDF documents,excel variable data document printing.more powerful functions |
 |

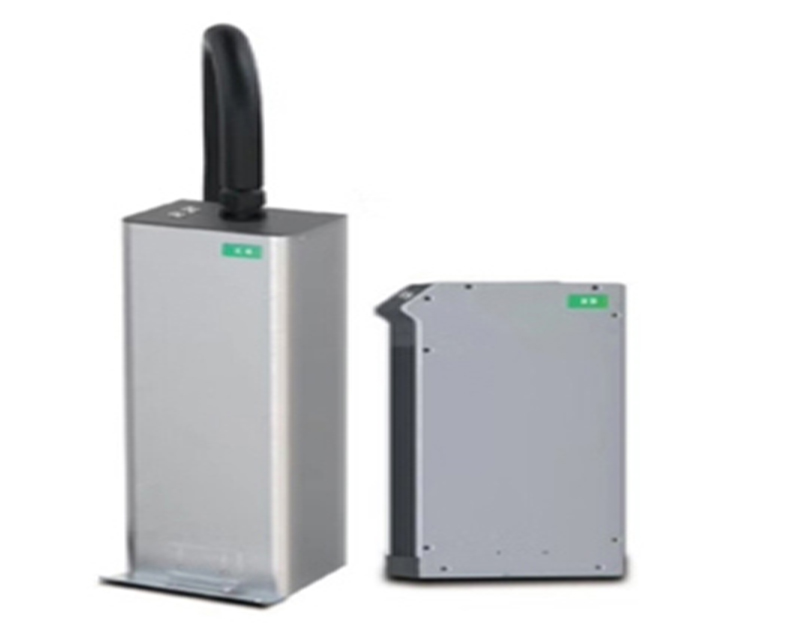

PlJ printhead Industrial-grade Pl printhead: imported from Japan,life of 30 billion times of printing High resolution: physical resolution up to 600DP!printing direction resolution up to 3000DP Large size: unlimited length, single head height up to 108mm |
 |

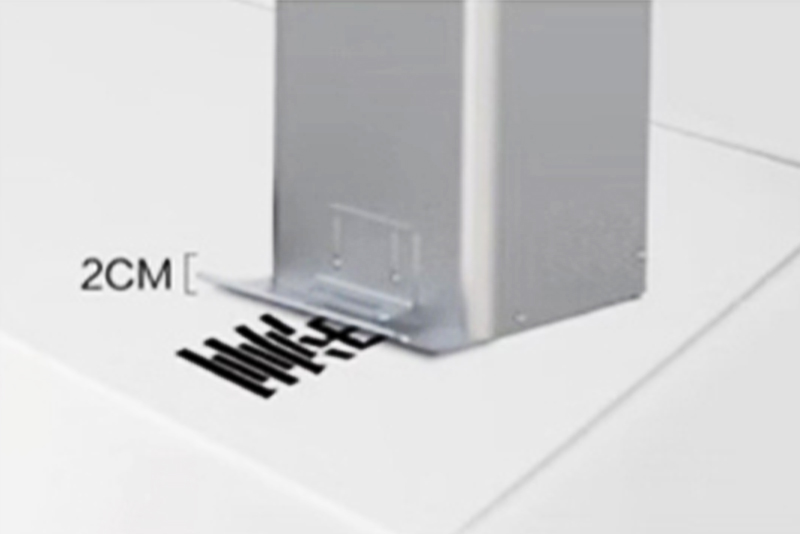

Printing distance can reach up to 2 cm Innovative software algorithm High-quality printhead Precise ink path control Printhead internal circulation |
 |

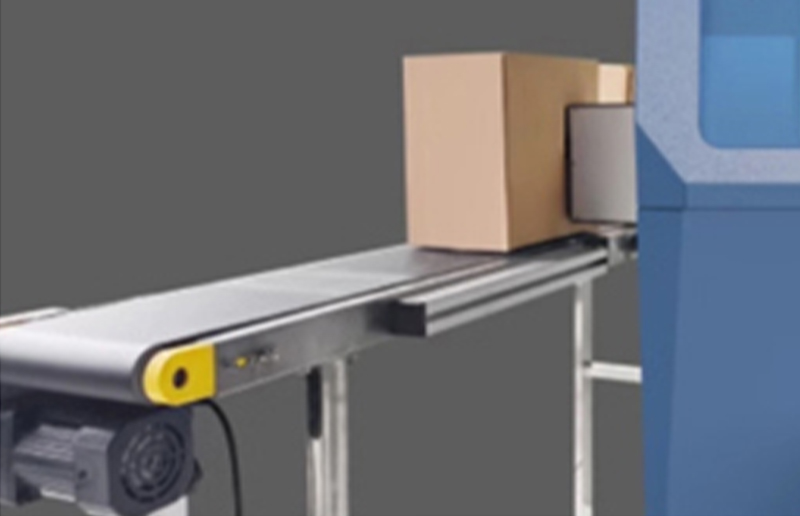

Horizontal printing Series high-resolution UV coding machine Split ink path Negative pressure/siphon ink path Standalone mounting option |
 |

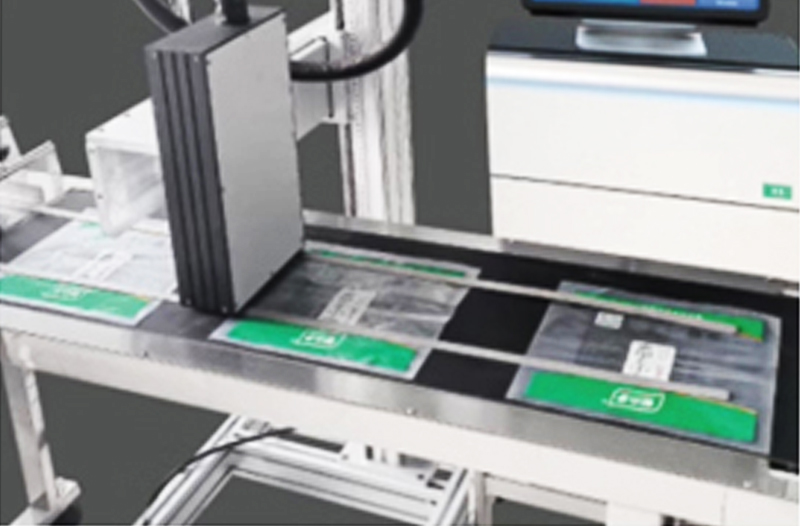

Downward printing X Series high-resolution UV coding machine Integrated ink path High-precision negative pressure control Online/standalone mounting options |
