Online Digital Intelligent Thermal Inkjet Printer-Faith coding

Features

1.Intuitive user interface - clear and efficient
Exclusive TU interface, proprietary OS interface, 30% faster response speed, for smooth operation!
2.Support Group control
You can link a computer and get data from it.
A computer can operate sevaral printers at same time.
3.Operating Interface
GS1 code/multi-language/various printing content/cost calculation
4.Multi-angle Printing
Multi-angle printhead adapts to any surface -perfectly prints on round bottles, square containers & irregular shapes.

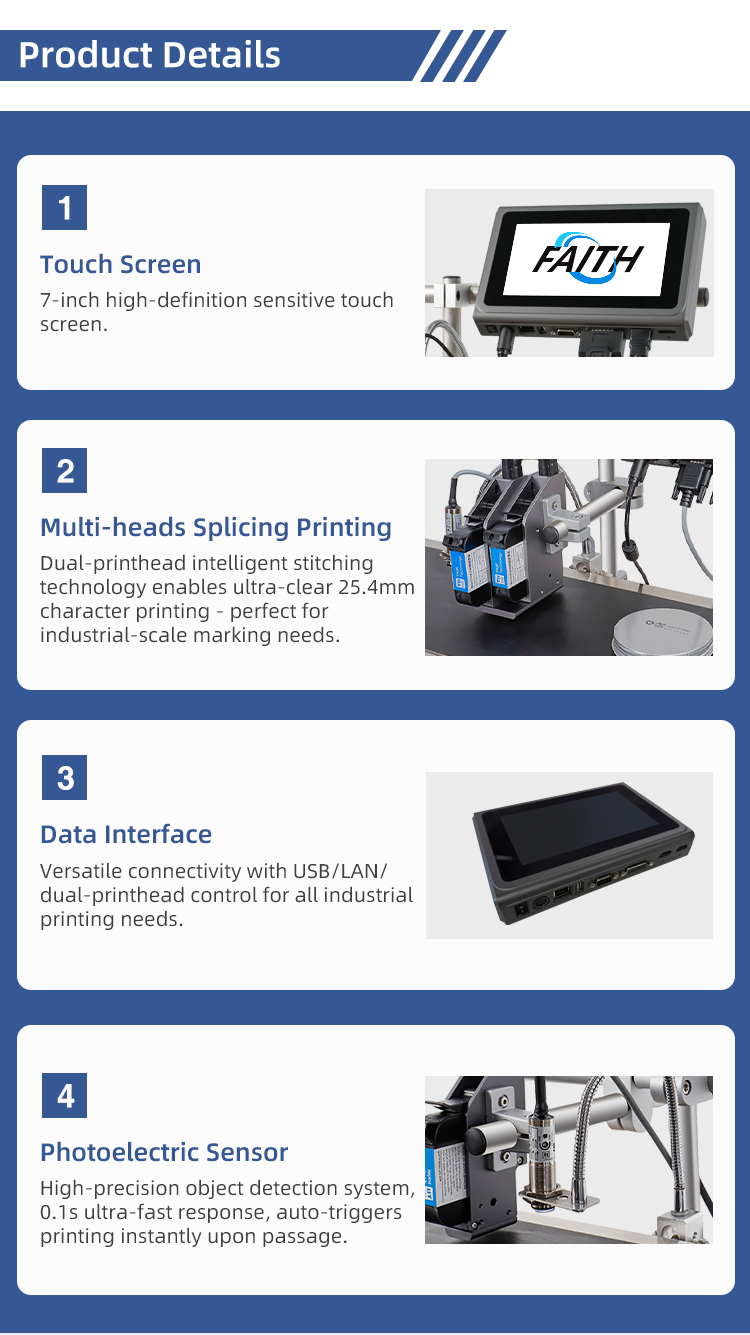

Product Detail

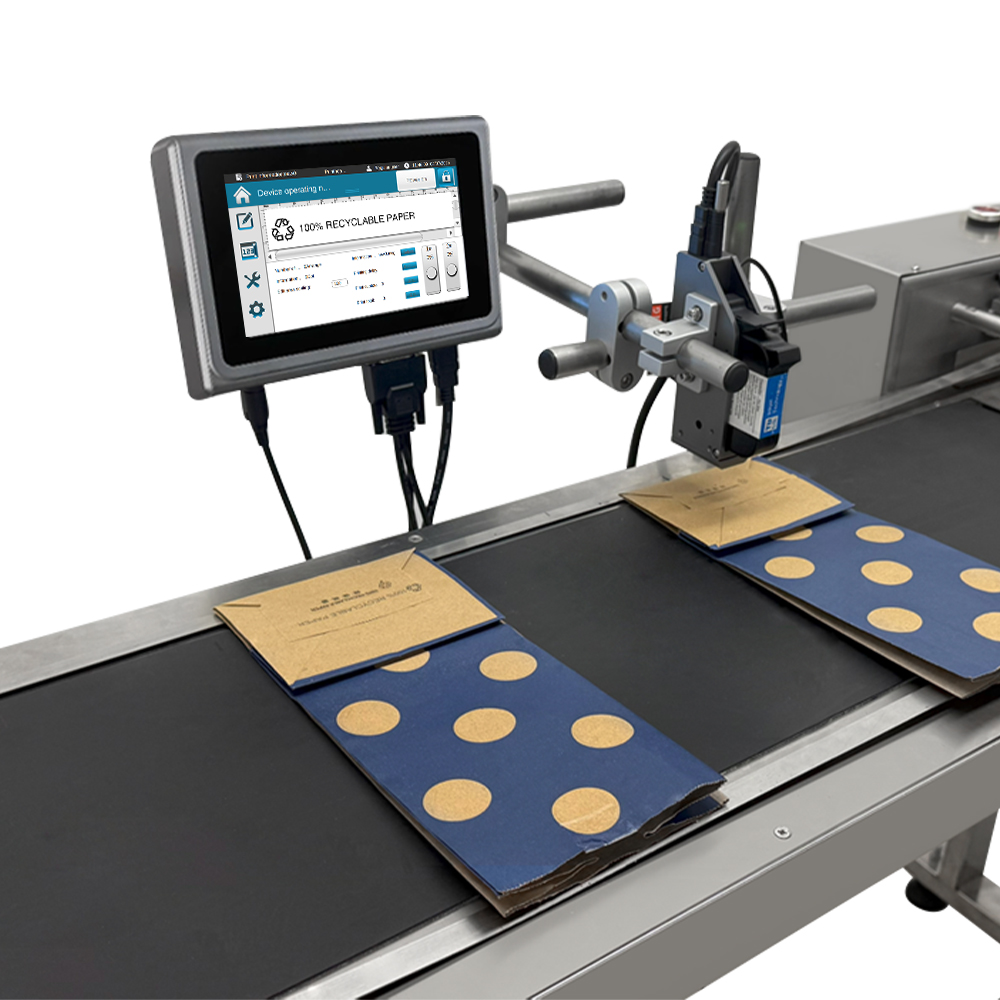

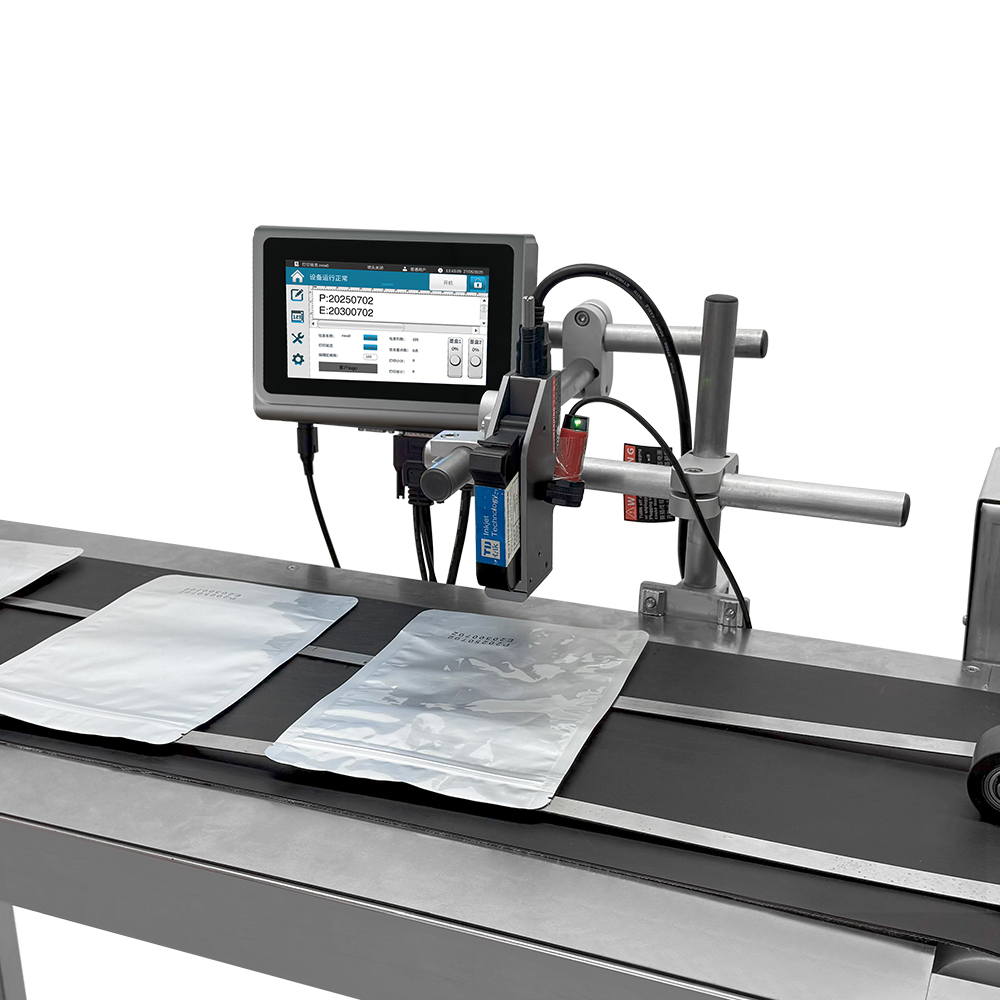

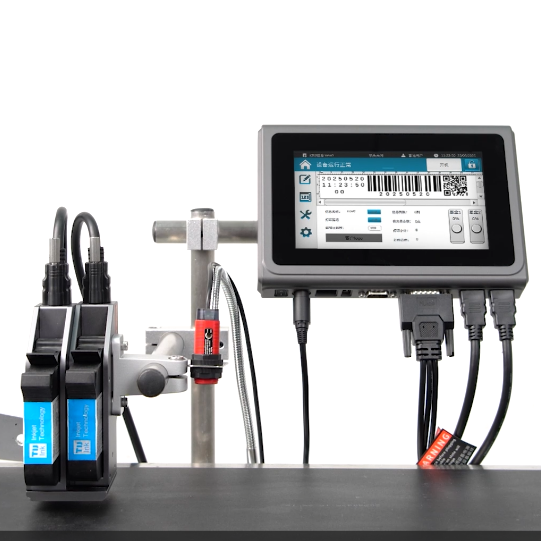

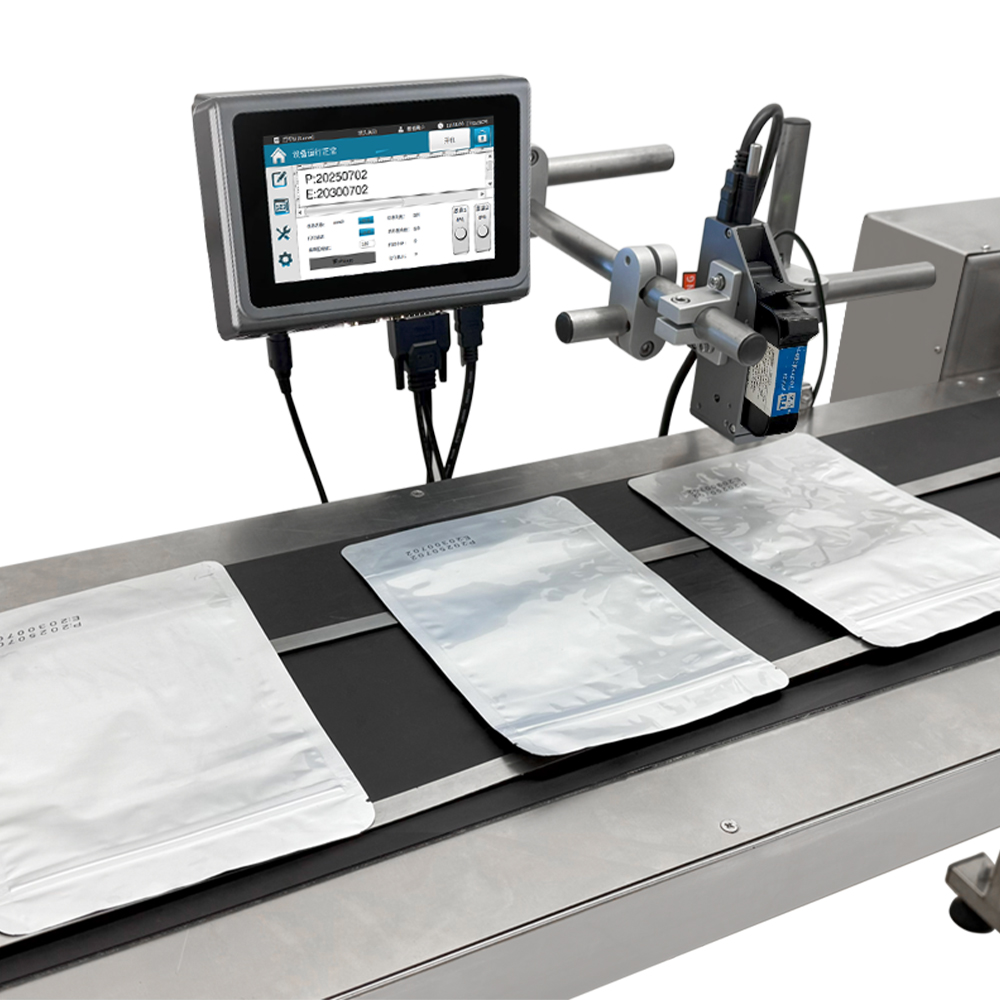

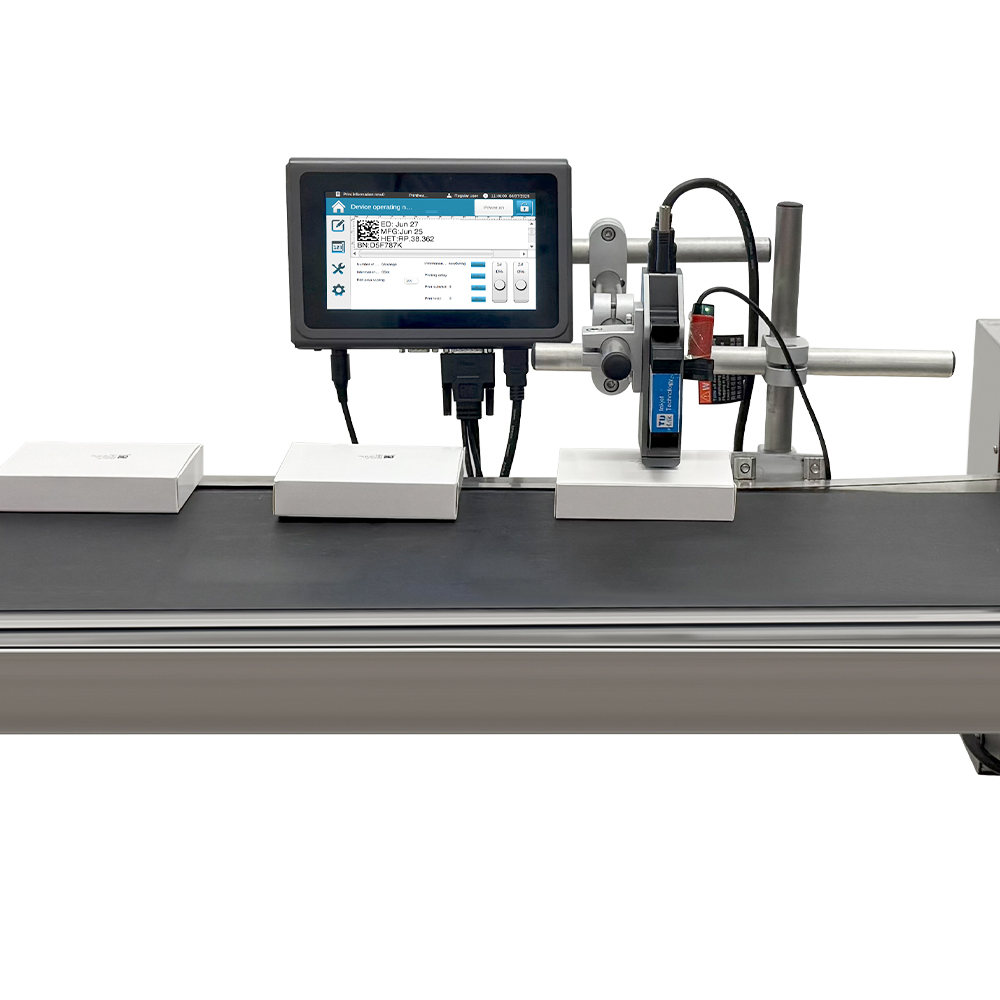

60m/min Online Inkjet Printer

Nozzle type	TIJ2.5 thermal nozzle
Printing Accuracy	150 dpi low resolution and 300 dpi high resolution optional, maximum speed 60m/min,adjustable printing grayscale 1-6 levels
Printing Height	Minimum printing lmm,maximum printing height 12.7mm (the best quality distance between thenozzle and the printing surface is 1-2mm)
Printing Material	Carton/plastic/metal/plate/pipestone/cable electronic components/auto parts/industrial chemical packaging/medical food gift box
Ink Type	42 ml food grade/water-based/oil-based/weak solvent/solvent ink cartridge,large-capacity ink pack continuous ink supply system
Ink Color	Black, white, red, yellow, blue, green, invisible, UV
RFlD Contactless Chip	Automatic identification of Inkcartridgechipink parameters and recording of ink remaining
Operating System	Embedded Linux Operating system Operating system
Main Hardware	Cortex-A7 1.2GHz dual-core processor FPGA algorithm acceleration chipset
Communication Interface	USB, RS232,TCP/iP network interface
External Interface	Photocell,encoder,alarm light, Ethernet,external flip and inversion
Input Method	Support keyboard multi-language input
User management	Administrator account authority management authorization management
Machine specifications	128mm87mm27mm

60m/min Online Inkjet Printer

It can print on almost any surface, such as cardboard boxes, bottles, plastic cups, wood, cables, pipes, labels, etc. to print QR codes, barcodes, serial numbers, GS1 codes, two-digit codes, production dates, etc.

Download Brochures

Machine
Model	KD486	KD200E	KD210
Printing Speed	0-110M/min	0-60M/min	0-508M/min
Printing Accuracy	600dpi	300DPI	600DPI
Size	21535140MM	128mm87mm27MM	274165.488MM
Printing Height	2-12.7mm or 2-25.4mm (higher printing height can be customized)
Supported Languages	Support 28 languages, including Chinese, English, Arabic, Turkish, etc.	Support more than 40 national languages, one-click switching
Printing Content	Can print date, text, batch number, QR code, logo, etc.
External Interface	Power interface, encoder interface, sensor interface, USB interface, HDMI interface	Photocell,encoder, alarm light, Ethernet,external flip and inversion	Photo eye/encoder/alarm control output/serial number output/external serial number reset/external serial number update/external printing information selection/flip control/printer connection port
Power Adapter	60W/12V	Power adapter 100-240VAC input, 24V2.75A DC output	Power supply 110-230V AC input

Online Digital Intelligent Thermal Inkjet Printer
